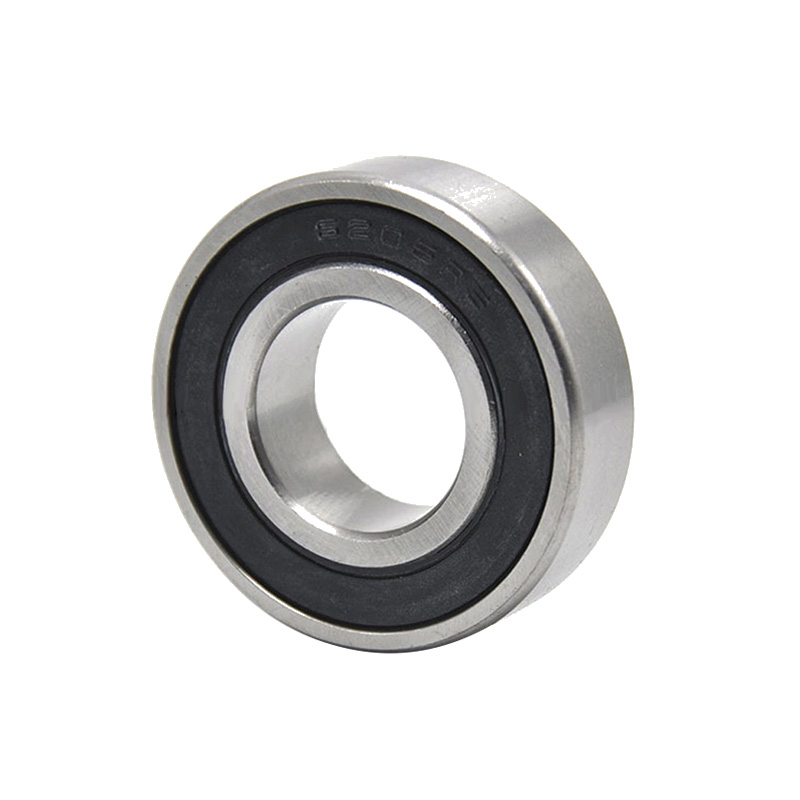

A 6205RS bearing is a specific type of deep groove ball bearing that is identified by its standard designation. The "62" in the name indicates the series of the bearing, while "05" refers to its size class. The "RS" denotes that the bearing has rubber seals on both sides to protect the balls and raceways from contamination. Here's a detailed summary of the 6205RS bearing, including its dimensions, features, and applications:

6205RS Bearing Dimensions

1. Bore Diameter (d): The bore diameter of a 6205RS bearing is 25 millimeters (mm). This is the diameter of the central hole in the bearing that fits onto the shaft.

2. Outer Diameter (D): The outer diameter is 52 mm, which is the measurement across the outer ring from one side to the other, passing through the center.

3. Width (B or T): The width of a 6205RS bearing is 15 mm. This dimension is the measurement from one side of the bearing to the other, perpendicular to the outer diameter.

4. Dynamic Load Rating (C): This is a measure of the maximum load that the bearing can handle under dynamic (rotating) conditions. For a 6205RS, the dynamic load rating is approximately 15.4 kN (kiloNewtons).

5. Static Load Rating (C0): The static load rating is the maximum load the bearing can withstand under static (stationary) conditions, which for a 6205RS is around 4.65 kN.

Construction and Materials

1. Inner Ring: The inner ring of a 6205RS bearing is designed to fit tightly around the shaft to provide support and guidance.

2. Outer Ring: The outer ring is larger in diameter than the inner ring and is typically housed in the bearing housing.

3. Balls: The bearing contains a set of balls that roll between the inner and outer rings, reducing friction and allowing for smooth rotation.

4. Rubber Seals (RS): The "RS" in the bearing's designation indicates that it has rubber seals on both sides. These seals help to keep out contaminants and retain lubrication.

5. Cage: A cage or retainer is used to evenly space the balls and to prevent them from touching each other, which could lead to increased friction and wear.

6. Materials: Deep groove ball bearings like the 6205RS are typically made from high-carbon chromium steel for the rings and balls, with the seals made from a durable rubber material.

7.


Applications of 6205RS Bearings

1. Automotive Industry: These bearings are used in various automotive applications, including wheel hubs, alternators, and power steering systems.

2. Electrical Motors: They are commonly used in electric motors due to their ability to handle both radial and axial loads.

3. Fan Assemblies: In cooling systems, such as computer fans or industrial ventilation systems, 6205RS bearings provide reliable and low-maintenance operation.

4. Agricultural Machinery: These bearings are found in various agricultural machines where they are subjected to dirt and moisture, benefiting from the protective seals.

5. Office Equipment: In printers, scanners, and other office equipment, 6205RS bearings ensure smooth operation of moving parts.

Performance Characteristics

1. Load Handling: The 6205RS bearing is designed to handle both radial and axial loads, making it versatile for various applications.

2. Low Friction: The rolling element design reduces friction compared to sliding bearings, which can increase efficiency and reduce heat generation.

3. Long Life: With proper lubrication and maintenance, 6205RS bearings can have a long service life.

4. Sealed Design: The rubber seals provide protection against contaminants, which can help to extend the life of the bearing in dirty or dusty environments.

5. Ease of Maintenance: The sealed design reduces the need for frequent relubrication, making these bearings low-maintenance.

6.


Maintenance and Lubrication

1. Lubrication: While the sealed design of the 6205RS bearing reduces the need for frequent lubrication, it is still important to ensure that the bearing is adequately lubricated at installation.

2. Inspection: Regular inspections for signs of wear, damage, or contamination are important to prevent premature failure.

3. Cleaning: If the seals need to be replaced or if the bearing is to be relubricated, it is important to clean the bearing thoroughly to remove any old lubricant or contaminants.

4. Replacement: When a 6205RS bearing reaches the end of its service life or is damaged, it should be replaced to prevent damage to the machinery it supports.

The 6205RS bearing, with its 25mm bore, 52mm outer diameter, and 15mm width, is a robust and versatile deep groove ball bearing suitable for a wide range of applications. Its sealed design, combined with its ability to handle both radial and axial loads, makes it a popular choice in industries where reliability and low maintenance are critical. Understanding the dimensions, construction, and performance characteristics of the 6205RS bearing is essential for selecting the right bearing for a specific application. With proper installation, lubrication, and maintenance, these bearings can provide reliable performance and long service life.
